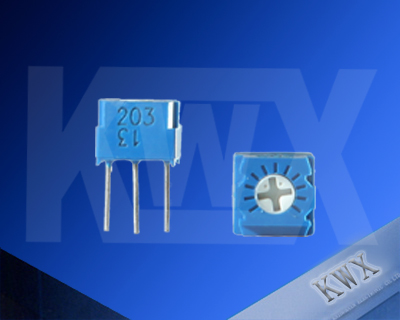

Product Name：3323 series square single-turn glazed potentiometer
Product No：563

download attachments PDF： 3323 series square single-turn glazed potentiometer 3323 series square single-turn glazed potentiometer

Added time：2015/11/4
Views：
Description

Feature：

  Standard Resistance Range:10Ω-2MΩ

  Resistance Tolerance:±5% ,±10%

  Terminal Resistance:≤1%R or 2Ω

  Contact Resistance Variation:≤3%R or 3Ω

  Insulation Resistance:R1≥1GΩ

  Winthstand Voltage:101.3kPa 600V 8.5kPa 315V

  Effective Electrical Travel: 210°±10°

 Power Rating:

    0.5W

Resistance Range(Ω)：

   10Ω~2MΩ

Tolerance:

    ±5% ±10%

TCR(PPM/℃)：

   ±100ppm/℃，±250PPm/℃
