㈠Scope：

        Viking’s 0201 and 0402 and 0603 series inductor is a
  photo lithographically etched single layer ceramic chip.
  Viking’s design provides high SRF, excellent Q, and superior
  temperature stability. This highly stable inductor family is
  specifically designed for critical tolerance needs.

㈡Features：

 ⅠPhotolithographic single layer ceramic chip.
 ⅡHigh SRF, excellent Q, superior temperature stability.
 ⅢTight tolerance of ± 1% or ± 0.1nH.
 ⅣSelf resonant frequency controlled within 10%.
 ⅤStable inductance in high frequency circuit.
 ⅥHighly stable design for critical needs.

㈢Applications：

 ⅠCellular Telephone, Pagers and GPS Products
 ⅡVCO, TCXO Circuit and RF Transceiver Module
 ⅢWireless LAN, Bluetooth Module, Communication Appliances

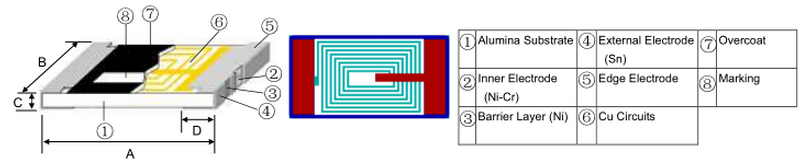

㈣Construction：

㈤Dimensions :

  01=0201,02=0402
㈥Inductance Tolerance:

  B:±0.1nH, C:±0.2nH, S:±0.3nH, F:±1%， G:±2%, H:±3%, J:±5%
