㈠Characteristics：

 Ⅰ Rated DC Current: The DC current when the inductance
    becomes 10% lower than its initial value or DC current when
    temperature of coil is increased to 40 ℃ (Ta-25℃）
    The smaller one is defined as Rated DC Current.
 ⅡOperating temperature range: -40 ～ 125°C

㈡Features：

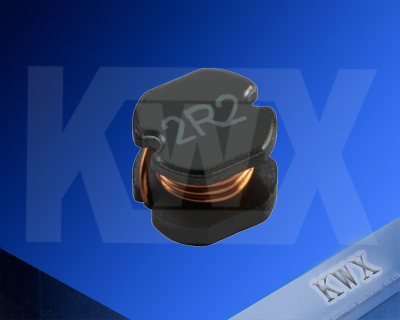

  ⅠHigh power, High saturation inductors
  ⅡSilver Plated Type, Low cost design.
  ⅢIdeal inductors for DC-DC converters.
  ⅣAvailable on tape and reel for auto surface mounting.

㈢Applications：

  ⅠPower Supply For VTRs..
  ⅡLCD Televisions
  ⅢPersonal Computers.
  Ⅳ Handheld Communication
  Ⅴ DC/DC Converters, etc.

㈣Dimensions( AxBxC ）：

  0301=3.5×3.0×1.15,0302= 3.5×3.0×2.1,0403=4.5×4.0×3.2,0502=5.8×5.2×2.5,

  0503= 5.8×5.2×3.0,0504=5.8×5.2×4.5,0703=7.8×7.0×3.5，0705= 7.8×7.0×5.0,

  1004= 10×9.0×4.0,1005= 10×9.0×5.4,1006=10×9.0×7.5

㈤Tolerance：

  K: ± 10%,M: ± 20%

㈥Inductance：

  1R0= 1.0µH,470= 47µH,101= 100µH
