Feature:

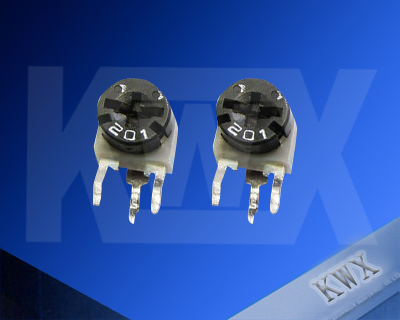

   RM065-H3's adjustment cap is black which is different from the blue and white adjustable resistor, RM063-H3 adjustable resistor with 6mm diameter is made from carbon film, or we can call it ∮6 horizontal type adjustable resistor or 6mm carbon film adjustable resistor, lead pitch is 5*2.5mm,adjustable direction is on the bottom, resistance range of the adjustment is 100Ω~2MΩ.

Applications:

   RM065C-H3 is widely used in the household appliance,instruments, communication products and electric security area.

Power Rating：

   0.1W

Tolerance:

   M±20%

Resistance Range(Ω):

  100~2M

TCR(PPM/℃):

  ±250ppm/℃
