Feature:

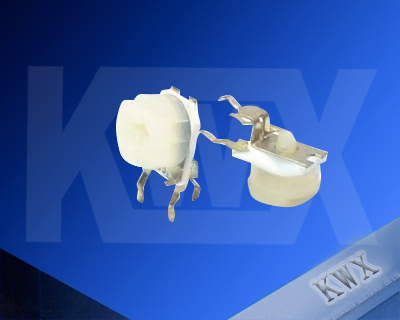

Ⅰ.RM065G-H3 is vertical type ceramic adjustable resistor,the pin point of the vertical adjustable resistor is two pins on the former and the third behind or one pin on the former and the other two pins behind; and the adjustment knob can be madeinto different colors, such as blue white and green.

Ⅱ.The parts material of the RM065G-H3 ceramic vertical type adjustable resistor:

   ①. Adjustment cap: nylon 66

   ②. Reed: Nickel Silver Copper with yellow color

   ③. Lead pin: iron or tin plated with white color

   ④. Ceramic resistor core: ceramic with white color

Applications:

   RM065G-H3 is widely used in the household appliance,instruments, communication products and electric security area.

Power Rating：

   0.25W

Tolerance:

   M±20%

Resistance Range(Ω):

   100~500K

TCR(PPM/℃):

   ±250ppm/℃
