㈠Scope:

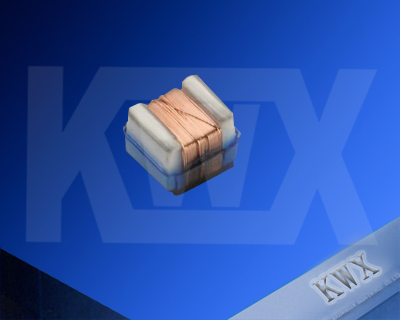

 Ceramic body and wire wound construction provide highest SRFs available

㈡Features:

 ⅠCeramic base provide high SRF.
 ⅡUltra-compact inductors provide high Q factors.
 ⅢLow profile, high current are available.
 ⅣMiniature SMD chip inductor for fully automated assembly.
   ⅤOutstanding endurance from Pull-up force, mechanical
    shock and pressure.
 ⅥTighter tolerance down to ±2%.
 Ⅶ Smaller size of 0402 (1005)

㈢Applications:

 RF Products:

 ⅠCellular Phone (CDMA/GSM/PHS).
 ⅡCordless Phone (DECT/CT1CT2).
 ⅢRemote Control, Security System.
 ⅣWireless PDA.
 ⅤWLL, Wireless LAN / Mouse / Keyboard / Earphone.
 ⅥVCO, RF Module & Other Wireless Products.
 ⅦBase Station, Repeater
 Ⅷ GPS Receiver
Broad Band Applications:
 ⅠCATV Filter, Tuner.
 ⅡCable Modem/ XDSL Tuner.
 ⅢSet Top Box.
IT Applications:
 ⅠUSB 2.0
 ⅡIEEE 1394.

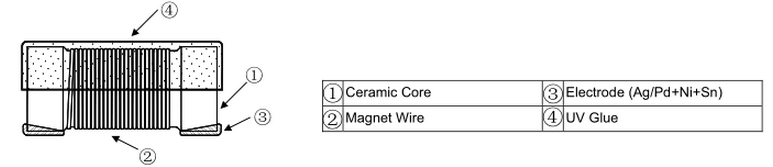

㈣Construction:

㈤Dimensions:

   0402,0603,0805,1008,1206

㈥Tolerance:

   C:±0.2nH,D:±0.5nH,G:±2%,H:±3%,J:±5%,K:±10%
