Feature:

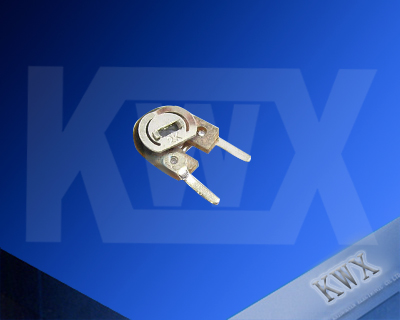

   Adjustable resistor RM065C-H2 with iron case carbon film material, 6mm diameter, which is also be called vertical ∮6 adjustable resistor, 6mm carbon film adjustable resistor.(with the lead pitch 5*5), turning point on the top and the adjustable resistance range is 100Ω-2MΩ

Applications:

  RM065C-H2 is widely used in the household appliance,instruments, communication products and electric security area.

Power Rating：

   0.1W

Tolerance:

   M±20%,N±30%

Resistance Range(Ω):

  100~2M

TCR(PPM/℃):

  ±250ppm/℃
