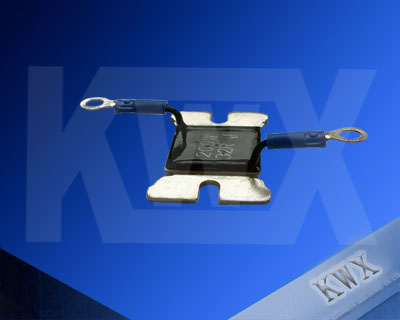

㈠Features：

   ⅠImported  thick  film materials and technology,  widely used in high frequency pulse load. Small temperature coefficient, high precision, wide range of resistance,small volume, high power,BR also can replace the large volume wire wound resistor to be used. The resistor comply with RoHs.
   ⅡUsing compact type and easy to be install. BR can  save circuit  board space, so as to reduce the size of the final product. The M4 screw flange plate installed 2 ~ 4terminal, provides 5 kinds of internal structure form,can be adjusted according to customer's requirement.

   ⅢWhen the bottom center temperature is ≤ 85 °C, the rated power of a single resistance structure is 200 W.
㈡Applications:

     Medium-power resistor with general type. Mainly used in variable speed drive actuator, power        supply,controlequipment, communications, automatic control and motor control, etc.

㈢Power Rating:
   250W
㈣Tolerance:
   F=±1%,G=±2%,J=±5%,K=±10%
㈤T.C.R:

   ±50ppm/℃,±100ppm/℃,±250ppm/℃

㈥Resistance Range:

   0.1Ω～1MΩ
