Features：

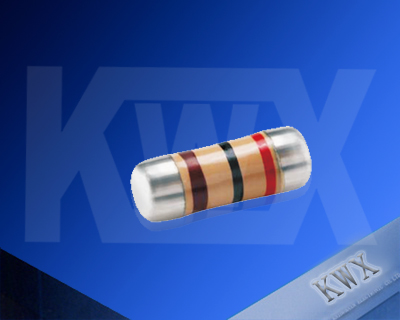

Ⅰ.style carbon resistor

Ⅱ.Free direction for mounting due to cylindrical design
Ⅲ.High solder ability due to specially plated electrodes
Ⅳ.Electrodes strength is higher than flat chip resistors
Ⅴ.Lower current noise than thick film flat chip resistors
Ⅵ.Suitable for reflow, flow and iron soldering

Applications:

Ⅰ.Automotive
Ⅱ.Telecommunication
Ⅲ.Medical Equipment
Ⅳ.Consumer Product

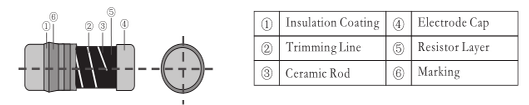

Constructions：

Power Rating:
  1W、2W、4W、1/2W、1/4W、
Tolerance:
  J=±5%、G=±2%
Resistance Range
  1Ω~1MΩ
T.C.R.:
   500PPM/℃,，±1000PPM/℃
