㈠Features：                                                                  Ⅰ.style carbon resistor
Ⅱ.Free direction for mounting due to cylindrical design
Ⅲ.High solder ability due to specially plated electrodes
Ⅳ.Electrodes strength is higher than flat chip resistors
Ⅴ.Lower current noise than thick film flat chip resistors
Ⅵ.Suitable for reflow, flow and iron soldering

㈡Applications:

Ⅰ.Automotive
Ⅱ.Telecommunication
Ⅲ.Medical Equipment
Ⅳ.Consumer Product

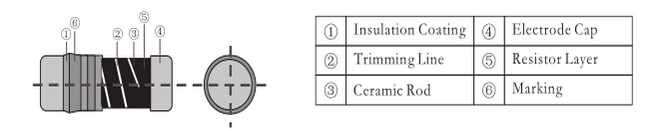

㈢Constructions：

㈢Power Rating:
  1W、2W、4W、1/2W、1/4W、
㈣Tolerance:
  J=±5%、G=±2%
㈤Resistance Range
  1Ω~1MΩ
㈥T.C.R.:
   500PPM/℃,，±1000PPM/℃
