㈠Features:

  ⅠExcellent overall stability
  ⅡTight tolerance down to ±0.1%
  ⅢExtremely low TCR down to ±10 PPM/℃
  ⅣHigh power rating up to 1 Watts

㈡Applications:

 ⅠTelecommunication
 ⅡMedical Equipment
 ⅢMeasurement/Testing Equipment

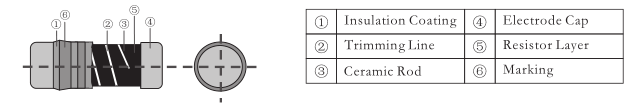

㈢Constructions:

㈣Power Rating:
  1/4W,1/8W,1/2W,1W
㈤Tolerance:
  B=±0.1%、C=±0.25%、D=±0.5%、F=±1%、J=±5%
㈥Resistance Range:
  10Ω~1MΩ、10Ω~100KΩ
㈦T.C.R.:
  B=±10PPM/℃、N=±15PPM/℃、C=±25PPM/℃、D=±50PPM/℃、E=±100PPM/℃
