㈠Features：

  ⅠNo Inductance
  ⅡExcellent Tolerance
  ⅢWider resistance values
  ⅣHigh Voltage、High Power

㈡Applications:

  ⅠImpulse voltage generator
  ⅡElectric-arc furnace damping
  ⅢPulse modulator, radar pulse opens the network
  ⅣArc suppression circuit of capacitor, high voltage buffer circuit
  ⅤX-ray/head portrait equipment and EMI/ lightning suppression

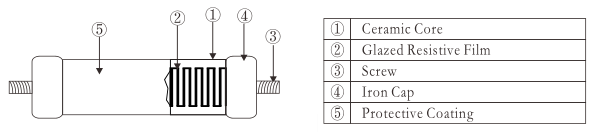

㈢Constructions:

㈣Power Rating:
    20W,25W,30W,50W,80W,100W.150W,200W,300W,400W,500W,600W,800W,1000W
㈤Tolerance:
    F=±1%、G=±2%、J=±5%、K=±10%

㈥Resistance Range(Ω)：
    1.0K-1000G

㈦TCR:

   ±300ppm℃
