（一）Feature:

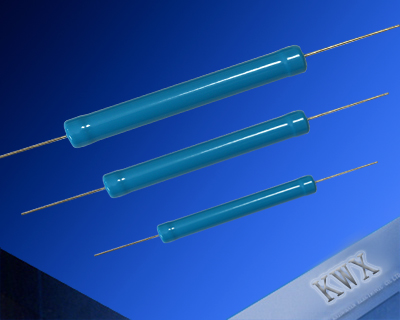

ⅠHSP series non-inductive high voltage resistors use high quality ceramic   substrates, have the characteristics of high mechanical strength, high load   power, high precision and good temperature coefficient.

ⅡIt has the characteristics of small size, high voltage resistance, wide   resistance range, etc., and is widely used in various electronic devices。

ⅢThe resistor film layer adopts a special design to pursue the largest possible  effective resistor area, improve the reliability and pulse tolerance of the   resistor, and has the characteristics of strong load moisture resistance,   high temperature resistance, strong electrical pulse resistance and high  long-term stability.

(二）Power Rating：

 17=3W,36=5W,50=7W,70=10W,100=12W,........
(三）Tolerance：

 B=±0.1% C=±0.25% D=±0.5% F=±1.0%  G(±2%) J(±5%) K(±10%)

(四）Resistance Value:0R10=0.1Ω、1R00=1Ω、30MR0=30MΩ

(五）TCR：

 ±100ppm/ºC
