㈠ Features：
  ⅠNo Inductance
  ⅡExcellent Tolerance
  ⅢWider resistance values
  ⅣHigh Voltage、High Power

㈡Applications：

  ⅠImpulse voltage generator
  ⅡElectric-arc furnace damping,
  ⅢPulse modulator, radar pulse circuit
  ⅣArc suppression circuit of capacitor, high voltage buffer circuit
  ⅤX-ray/head portrait equipment and EMI/ lightning suppression

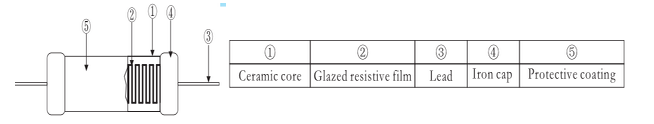

㈢Constructions：

㈣Power Rating：
   HVR1:1W,2W,3W,5W,7W,10W,15W,20W
㈤Tolerance：
   F=±1%、G=±2%、J=±5%、K=±10%

㈥ResistanceRange(Ω):

  1.0K-1000G

㈦TCR：
   ±200PPM/℃
