㈠Product Presentation：

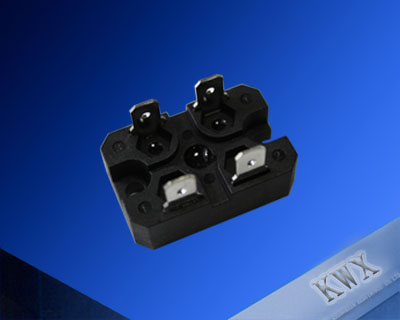

   This new design of the non–inductive thick film Metal  Oxide Technology with the wire terminals
eliminates the possibility for problems regarding creeping distance from  terminal to ground.
   Best results can be reached by using a thermal transfer compound with a heat conductivity of better
than 1W/mK. The flatness of the cooling plate must be better than 0.05mm overall. The roughness of the
surface should not exceed 6.4µm.

㈡Applications：

   This unique design will allow you to use this element in the following areas:Variable Speed Drives; Power
Supplies; Control Devices; Telecommunications; Robotics; Motor Controls and other Switching Devices.

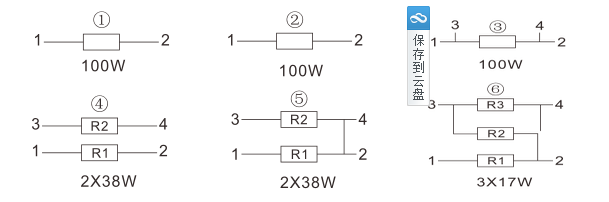

㈢Construction：

㈣Power Rating:
  100W
㈤Tolerance:
  F=±1%、G=±2%,J=±5%、K=±10%
㈥Resistance Range：
  1Ω～1MΩ
㈦T.C.R:
  ±50ppm/ ℃，±100ppm/ ℃，±250ppm/ ℃
