㈠Features:

Ⅰ.Imported thick film materials and technology, widely,used in high frequency pulse load. Small temperature
   coefficient, high precision, wide range of resistance small volume, high power, BR also can replace the large
   volume wire wound resistor to be used. The resistor comply with RoHs.

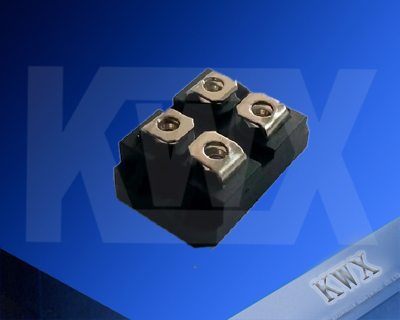

Ⅱ.Using compact type and easy to be install. BR can save circuit board space, so as to reduce the size of the
   final product. The M4 screw flange plate installed 2 ~ 4 terminal, provides 5 kinds of internal structure form,
   can be adjusted according to customer's requirement.

Ⅲ.When the bottom center temperature is ≤ 85 ° C, the rated power of a single resistance structure is 120 W.

㈡Applications:

   Medium-power resistor with general type. Mainly used in variable speed drive actuator, power supply,control

   equipment, communications, automatic control and motor control, etc.

㈢Power Rating:

  120W

㈣Tolerance:

  F=±1%,G=±2%,J=±5%,K=±10%

㈤ResistanceRange(Ω):

  0.1Ω～1MΩ

㈥TCR:

  ±50ppm/ ℃,±100ppm/ ℃,±250ppm/ ℃
