㈠Features:

   Ⅰ.（UL94 V-0）Flameproof and insulating coating designed to assure safe usage

       by special non-flammable silicon-base.(Equivalent to UL94 V-0)
   Ⅱ.Products meet EU-RoHS requirements.

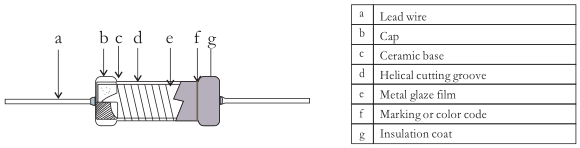

㈡Construction：

㈢Power Rating:
   1/6W，1/4W，1/2W，1W，2W，3W

㈣Tolerance:
   F±1%，G±2%，J=±5%
㈤Resistance Range：

  0.1K～<100M

㈥TCR：

  F±1%±100PPM/℃，G±2%±200PPM/℃，J±5%±200PPM/℃
