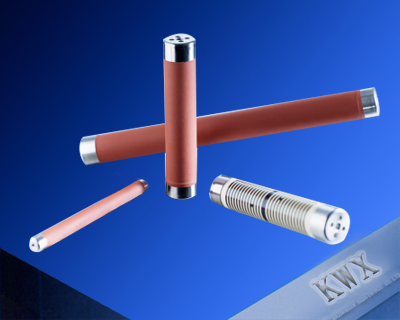

The MTT resistor series is designed for use in voltage dividers,  medical equipment, electrostatic devices, measuring equipment  and current limiting devices where high stability, low TCR, high  ohmic values and high shortterm loads are required.

（一）Feature：

Ⅰup to 96 kV operating voltage

ⅡTolerance range ±0.1% to ±10 %

ⅢOhmic range 2 Ω to 25 GΩ

ⅣNon-Inductive design

ⅤROHS compliant

(二）Power Rating:：

  11=11W 23=23W 54=54W 71=71W 105=105W

(三）Tolerance：

 B=±0.1% C=±0.25% D=±0.5% F=±1.0%  G(±2%) J(±5%) K(±10%)
(四）Resistance Value：

  ±50~±200 ppm/℃
