（一）Feature:

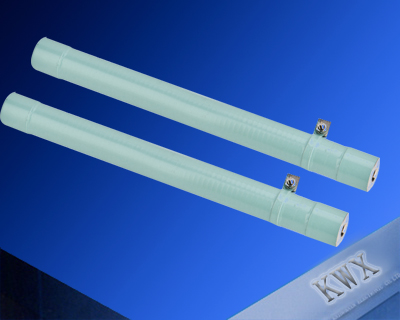

ⅠCylindrical (thick film, non-inductive design) high-voltage voltage divider resistor,using 96%content of ceramic rod, is a high-end type among the high-voltage voltage divider resistors produced by our company.

ⅡMTX series is a three-lead cylindrical voltage divider network, its voltage divider ratio is(R1+R2)/R2 (the voltage divider ratio can be customized  according to customer requirements, such as 1000:1, 100:1, etc.

ⅢSilicone resin coating (resistant to 225℃), the two ends of the lead are installed with M4 or M8 screws, and the voltage divider end is installed with a clamp, M3 screws (or Φ1.0 tinned copper wire,can also be designed according to customer requirements.)

(二）Power Rating：

 155=10W、300=15W、81=10W、214=20W、303=30W

(三）Tolerance：

 B=±0.1% C=±0.25% D=±0.5% F=±1.0%  G(±2%) J(±5%) K(±10%)

(四）Resistance Value:0R10=0.1Ω、1R00=1Ω、30MR0=30MΩ

(五）TCR：

 ±100ppm/ºC
