㈠Features

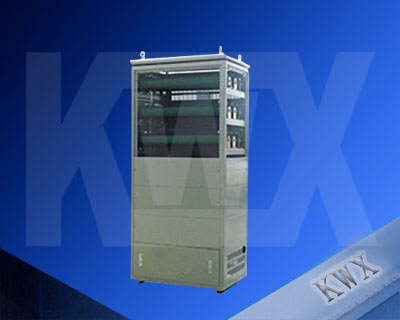

   Ⅰ.PRU series is resistor cabinet that is made up of Wire Wound Resistors
   Ⅱ.It can be applied to the power loss braking circuits for inverters of braking equipment,
      testing equipmnet,elevator and crane with large rated power and operating current.
   Ⅲ.Power Range: 20KW-200KW
   Ⅳ.Voltage Range: 0.5KV—10KV
   Ⅴ.Resistance Range: 0.5R-100R
   Ⅵ.Dielectric Strength: AC2.5KV-30KV/1min 50Hz optional
   Ⅶ.IP Protection: IP20-IP23 optional
   Ⅷ.Vibration: 0.5g
   Ⅸ.Temperature Rise: 375
   Ⅹ.Temperature Coefficient: 80-400 PPM/
   Ⅺ.Resistor Material: 0Cr25AL5/Ni80Cr20 optional
   Ⅻ.Advantage: High Voltage Application, high power
      Disadvantage: Less Vibration

More detail information about specifications and models,pls contact our engineering: kwx@kwxcom.com
