download attachments PDF:

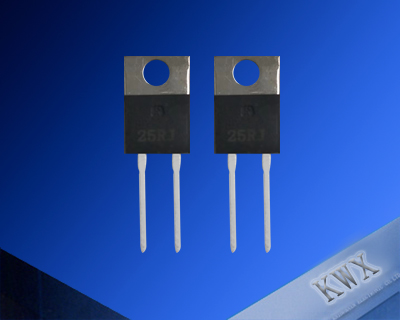

PTR20
㈠Features:
ⅠTO-220 housing
Ⅱ Low inductance
Ⅲ Resistor electrically isolated from the backplate
Ⅳ High power rating
ⅤAEC-Q200 compliant
Ⅵ RoHS compliant*
㈡Application:
Ⅰ Switching Power Supplies
Ⅱ Snubbers Circuits
Ⅲ Automated Machine Controller
Ⅳ RF Power Amplifiers
ⅤLow Energy Pulse Loading
Ⅵ UPS
Ⅶ Voltage Regulation

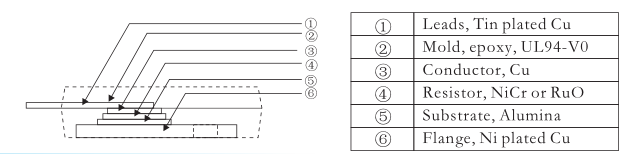

㈢Construction:

㈣Power Rating:
PRT20W
㈤Tolerance:
F:±1%、J±5%、K±10%
㈥Resistance:
0.02~130KΩ
㈦T.C.R:
±100ppm/℃
