㈠Features：

  ⅠUse a metal screw and high-quality ceramics as skeleton
  Ⅱ.Resistor components adopts resistance alloy which performance is very stable.
  Ⅲ.Terminal and resistor body introduces argon arc welding process
  Ⅳ.Continuous surface temperature does not exceed 350 ℃

㈡Applications:

  ⅠWidely used in power generation assembly.
  ⅡAlso used in high power electrical equipment.

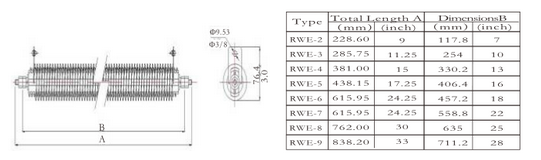

㈢Constructions (mm):

㈣Rated cuyyent:
  11A,12A,18A,21A,24A,27A,29A......105A
㈤Tolerance:
  K=±10%
㈥Resistance Range:
  1.1R=1.1Ω
㈦T.C.R:
  ±250ppm/℃
