㈠Features:

  Ⅰ Compact type with safety design of non-flammability and insulation
  Ⅱ Stable long life
  Ⅲ Products meet Eu-RoHS

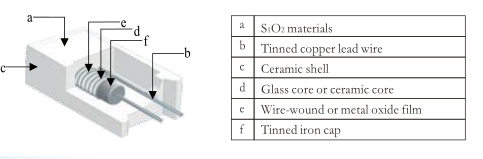

㈡Constructions：

㈢Power Rating:

  1W、2W、3W、5W、7W、10W、15W、20W
㈣Tolerance:

  F=±1%、G=±2%、H=±3%、J=±5%
㈤Resistance Range:

  100~100K

㈥TCR:

  Matel oxide film：±350PPM/℃  Wirewound:±100PPM/℃
