㈠Features:

  Choice of fibre glass or ceramic core.
  Choice of mounting pillars for additional stability.
  Non inductive type available

㈡Applications:

  Space saving, vertical mounting resistors.
  Consumer and industrial applications

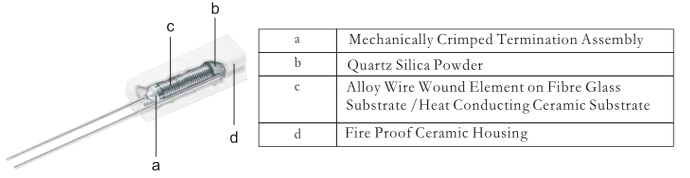

㈢Construction:

㈣Power Rating:
    4W,5W,7W,9W,11W,17W
㈤Tolerance:
    F=±1%,G=±2%,H=±3%,J=±5%,K=±10%
㈥TCR:
    ±120 ppm / ℃ for<R10，±80 ppm / ℃ for <1R0
    ±60 ppm / ℃ for<100r，±90 30="" ppm="" or="" for="">100R
