㈠Features：

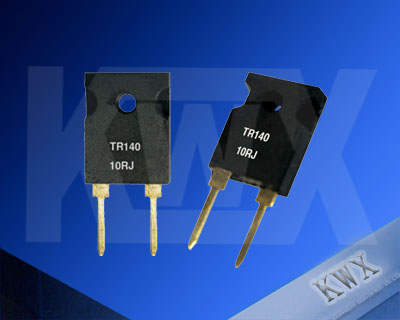

  ⅠUsing thick film, Non-inductive, TO-247 Standard package
  ⅡRating power 140W(the temp of floor center less than 25℃)
  ⅢResistance range :from 0.5Ω to 2.2KΩ
  ⅣTolerance：±10%、±5%
  ⅤThe range of working temperature :-55℃——155℃
  ⅥTCR: ±50PPM/℃,±100PPM/℃,±250PPM/℃
  ⅦThe max working voltage :700V
  ⅧWithstand voltage in insulating layer:2500V
  ⅨDielectric resistance: Min 10000MΩ

㈡Application:

  Wind power generation, power transmission, robot,
  frequency converter,switching power supply and so on.

㈢Power Rating:
    140W
㈣Tolerance:
     J=±5%,K=±10%

㈤TCR:

    C=±50ppm/℃,A=±100ppm/℃,H=±250ppm/℃
