㈠Features：

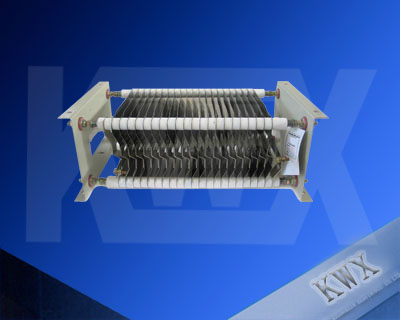

  ⅠA combination of ZC stainless steel resistor discs providing corrosion resistance, zero

    induction, stable resistance and long service life
  ⅡService temperature range：-55℃~+315℃
  ⅢRated power：5KW～5.6KW
  ⅣAdmissible resistance deviation ：±10%

㈡Application:

  Suitable for circuits of power systems with AC voltage within 1140V and DC voltage within 1500V.

   Used mostly for startup,braking,speed control and load of elevators, cranes, port machines, roll

   mills, windlasses, power generators and inverters.

㈢Rated current:
    50A，100A，200A……
㈣Tolerance:
    K=±10%
